USAG 1000A 075 P AC/DC Current Clamp Meter - High Precision and Safety

USAG 1000A 075 P AC/DC Current Clamp Meter - High Precision and Safety

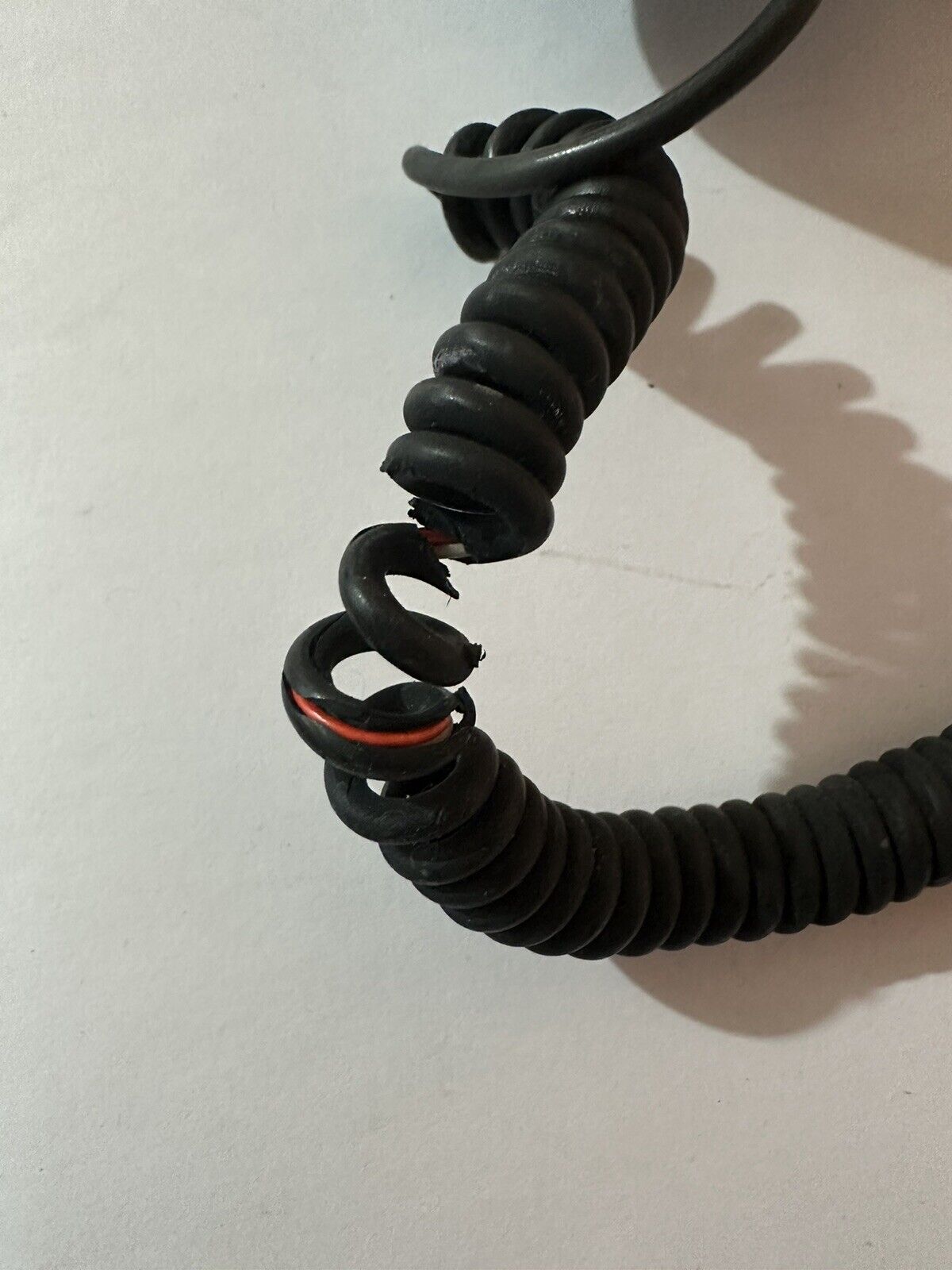

There USAG 075 P AC/DC Current Clamp Meter It is a high quality electrical measuring instrument, new and never used, despite the damaged cable as shown in the photograph. Complete with original case and manual, this tool is ideal for professionals who require precision and reliability.

Technical specifications:

• Insulation Class : 1000V CAT.II per IEC 1010 - 1
• Use Temperature : from 0 to 40 °C <80% RH
• Storage Temperature : -10 to +50 °C <80% RH
• Accuracy : Detailed specifications on page 5 of the manual
• Maximum voltage to Earth : 1000V with insulated cables
• Frequency Response : 50 - 60 Hz
• Overload Protection : up to 1200 A for 60 seconds
• Maximum Jaw Opening : 55 mm
• Power supply : 9V 6F22 battery
• Dimensions : 256x104x47 mm
• Weight : 520 gr

Safety Information: Designed in accordance with IEC1010 and IEC 1010 - 2 - 032 standards, the current clamp guarantees the highest safety standards for electrical measuring instruments.
